OPERATION

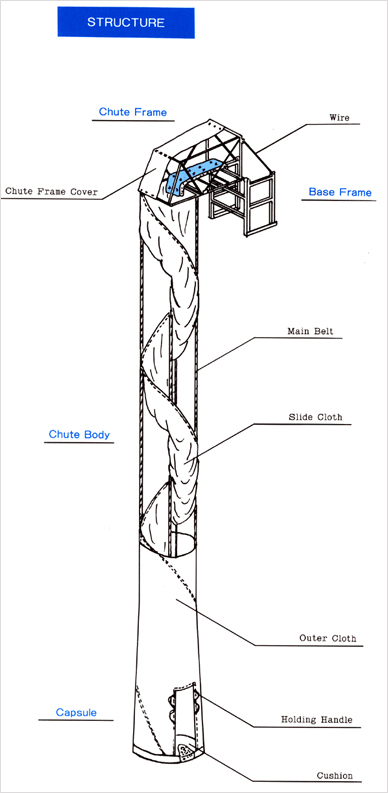

The Fire Escape Chute is developed for application on variable altitude evacuation, such as above ground railway trains, gondolas, amusement parks rides etc. Once reached the safe ground, the escapee just to exit the chute. The weight of the chute body is about 1.4kg/M (1 lb/ft) and can hold up to 1800 kg (approximate 4000 lbs) at once during evacuation. The Chute is made on spiral form in the left turn direction. The speed of descending is about 2 meters (7') or less per second. Therefore, no heavy shock or impact should be felt when escapee reaches the bottom of the chute where a protective landing cushion is attached for additional protection
DESCENT & SAFETY
The chute is made in spiral form in the left turn directions, so try to descend in it turning the body in the left direction.
The speed of descent is about 2 meters or less per second and the speed never exceeds the above limit. Therefore, no shock is felt during the descent in the chute or at the time when reaching the protecting cushion in the capsule at the bottom of the chute.
This means that the chute assures the highest degree of safety and no danger at all.
